Sistem deplasare laterala lame stivuitor 2500kg FEM 2 - lățime 1150mm – Model TRF225.115P
4.575,63 RON
(TVA inclus)
3.781,51 RON
(fara TVA)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere
Sistem deplasare laterala lame stivuitor 2500kg FEM 2 - lățime 1150mm – Model TRF225.115P

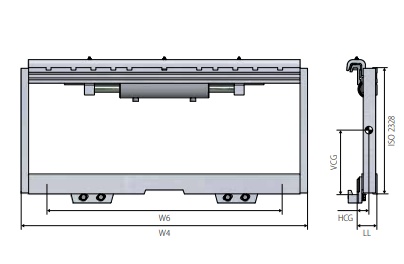

Detalii produs
MarcăCAM ATTACHMENTS
Typesideshifter ISO/FEM with sliding pads
Clasa de montare (ISO 2328)FEM2
Capacitatea pe centrul de greutate (Q1) (kg)2500
Centru de greutate (LC) (mm)600
Grosimea la capatul furcii (LL) (mm)70
Total sideshift stroke100+100 mm
Largimea minima a caruciorului de furci (W6) (mm)900
Largimea maxima a sasiului fix (W4) (mm)1150
Centrul de gravitate orizontal (HCG) (mm)34
Greutatea atasamentului (G) (kg)60
TRF
Model atasamentTRF225.115P
Reinforced frameNO
Distance between two external notching (L31) (mm)980
Presiunea maxima (Bar)220
ISO2328
Greutate76

Click on image to zoom
Despre produs
This lift truck side shift smoothly manoeuvres around tight corners, saving the driver precious time.
Mai aveți 24 luni de garanție pentru acest produs
Informații suplimentare
If a reconditioned part is available, we will send you an offer within 48 hours For more info, please contact your sales advisor.
Type: sideshifter ISO/FEM with sliding pads
Clasa de montare (ISO 2328): FEM2
Capacitatea pe centrul de greutate (Q1) (kg): 2500
Centru de greutate (LC) (mm): 600
Grosimea la capatul furcii (LL) (mm): 70
Total sideshift stroke: 100+100 mm
Largimea minima a caruciorului de furci (W6) (mm): 900
Largimea maxima a sasiului fix (W4) (mm): 1150
Centrul de gravitate orizontal (HCG) (mm): 34
Greutatea atasamentului (G) (kg): 60
Model atasament: TRF225.115P
Presiunea maxima (Bar): 220

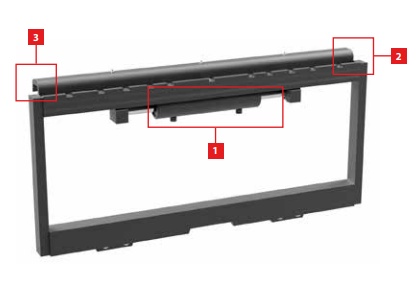

Beneficii
High-mounted cylinder for superior visibility
Extremely strong and robust, single-piece upper S-bar
Fully protected bearings
Grease fittings on top of the upper bar
Ideal for intensive use
Expertly manufactured
High mechanical strength
Extremely strong and robust, single-piece upper S-bar
Fully protected bearings
Grease fittings on top of the upper bar
Ideal for intensive use
Expertly manufactured
High mechanical strength
Descriere

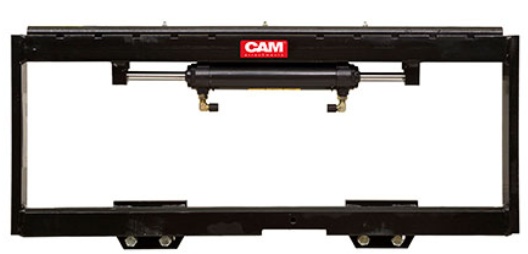

With this TRF sideshifter,moving loads from side to side is done quickly and easily. It enables fast lifting and accurate placement, which is why it’s one of the most popular attachments in use today. And the advantages don’t end there. The overall handling time is reduced significantly, there's substantially less chance of damaging pallets and products, and the manoeuvrability increases, even in tight spaces. The TRF side shift is ideal for intensive use. Its double-action cylinder ensures consistent shifting speeds in either direction and can quickly be taken apart for easy maintenance. The upper bar is made from a single piece of steel, ensuring both strength and durability. Suitable for most types of lift trucks, FEM 2 forks are a popular choice. They’re easy to recognise by the 20° chamfer on the fork hook that’s used to mount them. These forklift forks are made of high-quality chromium-manganese steel, guaranteeing high mechanical strength. Plus, they’re expertly manufactured with a smooth, refined finish.

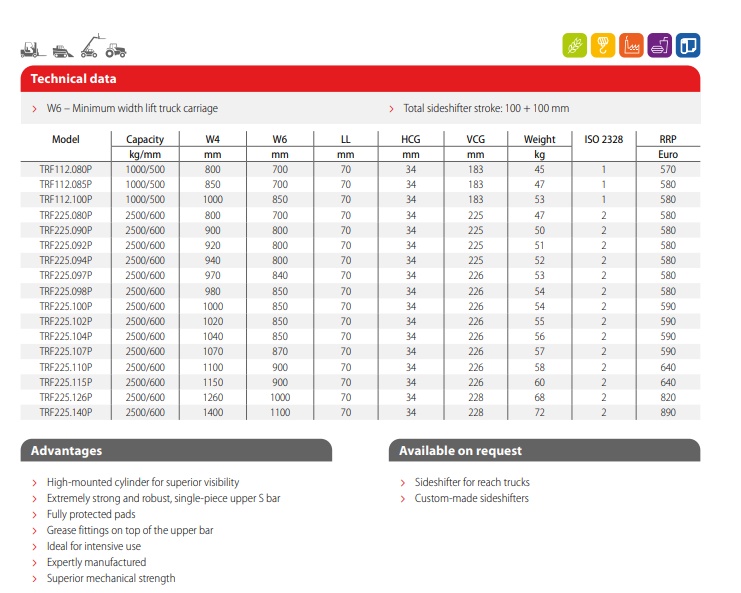

Tabel specificații translatii stivuitoare
| Model | Capacitate kg/mm | W4 mm | W6 mm | LL mm | HCG mm | VCG mm | Greutate kg | ISO 2328 |
|---|---|---|---|---|---|---|---|---|
| TRF112.080P | 1000/500 | 800 | 700 | 70 | 34 | 183 | 45 | 1 |
| TRF112.085P | 1000/500 | 850 | 700 | 70 | 34 | 183 | 47 | 1 |
| TRF112.100P | 1000/500 | 1000 | 850 | 70 | 34 | 183 | 53 | 1 |
| TRF225.080P | 2500/600 | 800 | 700 | 70 | 34 | 225 | 47 | 2 |
| TRF225.090P | 2500/600 | 900 | 800 | 70 | 34 | 225 | 50 | 2 |
| TRF225.092P | 2500/600 | 920 | 800 | 70 | 34 | 225 | 51 | 2 |
| TRF225.094P | 2500/600 | 940 | 800 | 70 | 34 | 225 | 52 | 2 |
| TRF225.097P | 2500/600 | 970 | 840 | 70 | 34 | 226 | 53 | 2 |
| TRF225.098P | 2500/600 | 980 | 850 | 70 | 34 | 226 | 54 | 2 |
| TRF225.100P | 2500/600 | 1000 | 850 | 70 | 34 | 226 | 54 | 2 |
| TRF225.102P | 2500/600 | 1020 | 850 | 70 | 34 | 226 | 55 | 2 |
| TRF225.104P | 2500/600 | 1040 | 850 | 70 | 34 | 226 | 56 | 2 |
| TRF225.107P | 2500/600 | 1070 | 870 | 70 | 34 | 226 | 57 | 2 |
| TRF225.110P | 2500/600 | 1100 | 900 | 70 | 34 | 226 | 58 | 2 |
| TRF225.115P | 2500/600 | 1150 | 900 | 70 | 34 | 226 | 60 | 2 |
| TRF225.126P | 2500/600 | 1260 | 1000 | 70 | 34 | 228 | 68 | 2 |
| TRF225.140P | 2500/600 | 1400 | 1100 | 70 | 34 | 228 | 72 | 2 |
